Dynamis Console Simulator

A working mock of the SP Dynamis touchscreen. Pick a wavelength, a pulse mode and a handpiece, then move the dials. Treatments light up when your settings sit inside their documented parameter window.

Full ring = settings are on protocol Thin ring = right mode and handpiece, a dial is off Click a treatment to load its documented settings Greyed controls explain why on the card

Wavelength

Pulse mode

Pulse mode

Self-induced fractional photothermolysis. 3D islands of heat form inside the skin and force a rebuild around them.

Fluence J/cm² 40 J/cm²
Pulse duration 1.0 ms
Spot size mm 5 mm
Frequency Hz 2 Hz
Turbo stacks Off
TURBO stacks activate with FS01 + SP / LP / VLP / XLP

Handpiece rack

Nd:YAG 1064 nm treatments

Er:YAG 2940 nm treatments

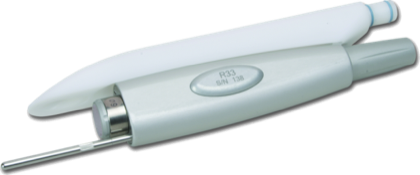

Nd:YAG 1064 nm · FRAC3 at 1.0 ms · 40 J/cm² through the R33 / R33T at 5 mm · 2 Hz. On protocol for: Skin rejuvenation · FRAC3.
